PVE Lift USA – Wheelchair Accessible –  Indoors Only – Up to 4 Floors

EGP2.000

This is the price for a site visit.



PVE Home Lifts
  • Models : PVE 30 / PVE 37 / PVE52
  • Load : 350/ 450/ 525 Pounds
  • Head Unite / Split Unite
  • Accommodates Wheelchair (PVE 52)
  • Drive: Pneumatic
  • Application: Through Floor / Balcony
  • Exterior Dimension : 750mm /  933mm /1,316mm
  • Power Supply: 25 AMP 220VAC
  • No pit, hoist way or machine room required
  • Designed in USA and imported From Spain

A site visit is recommended before purchasing this product.

Request A Callback for More Details

All products are by order and completely imported.

Three Models PVE Home Lifts – Up to 4 Floors – Indoors

Our pneumatic home elevators are surprisingly easy to install and maintain. Our pneumatic home elevators are surprisingly easy to install and maintain.A manufacturer’s study shows that pneumatic elevators need maintenance once every 5 years, or about 15,000 lifts, to replace the main seal. This is only a minor inconvenience compared to a traditional elevator that requires frequent inspections, annual maintenance, and costly parts that must be routinely replaced. Low maintenance is just one of the features that make our pneumatic elevator pve 30 perfect for homeowners who have mobility issues, but still demand superior function and minimal hassle from their accessibility equipment.



Eco‐Friendly Home Elevator

All that is needed to power this mighty elevator is 220V, 25 Amp, single phase service. This is roughly the same as what your washer and dryer use. From an environmental and cost-saving standpoint, the PVE30 draws the least amount of electricity out of all of all home elevator models. Just like the other models in our lineup, it does not even use electricity to descend. Not only will your life be a lot easier now that you can avoid the stairs, but your electric bill will barely change!

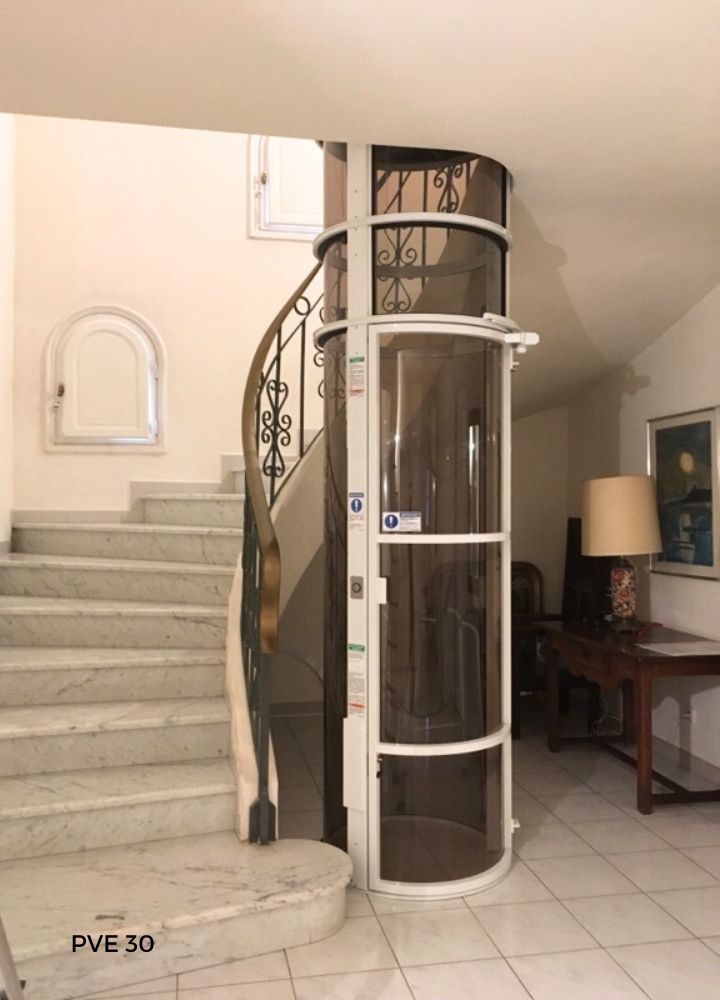

PVE 30 – 1 Passanger

The PVE30 is the smallest home elevator in the world, yet it is just as capable as other residential elevators that are much larger and much more expensive. The PVE30 elevator has a 350lb (159kg) lift capacity and is capable of up to 50 ft. (15m) of rise over as many as five stops. With a 30 inch outside diameter, it is small enough to fit in even the most modest-sized home. If you thought a home elevator was out of reach for you because of size constraints, this is the solution you have been looking for.

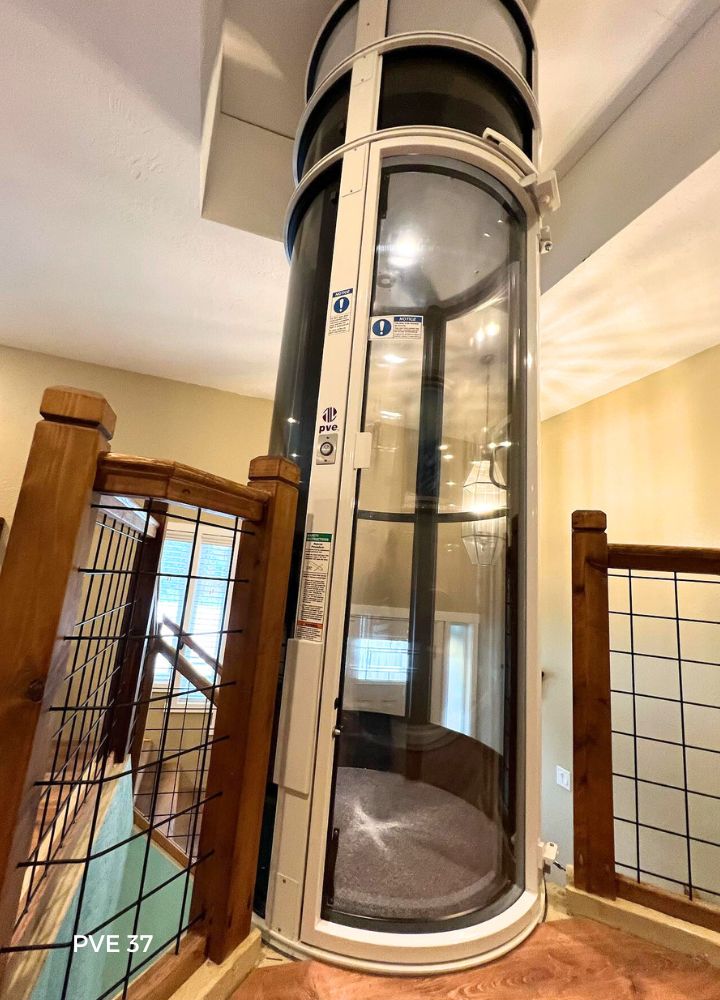

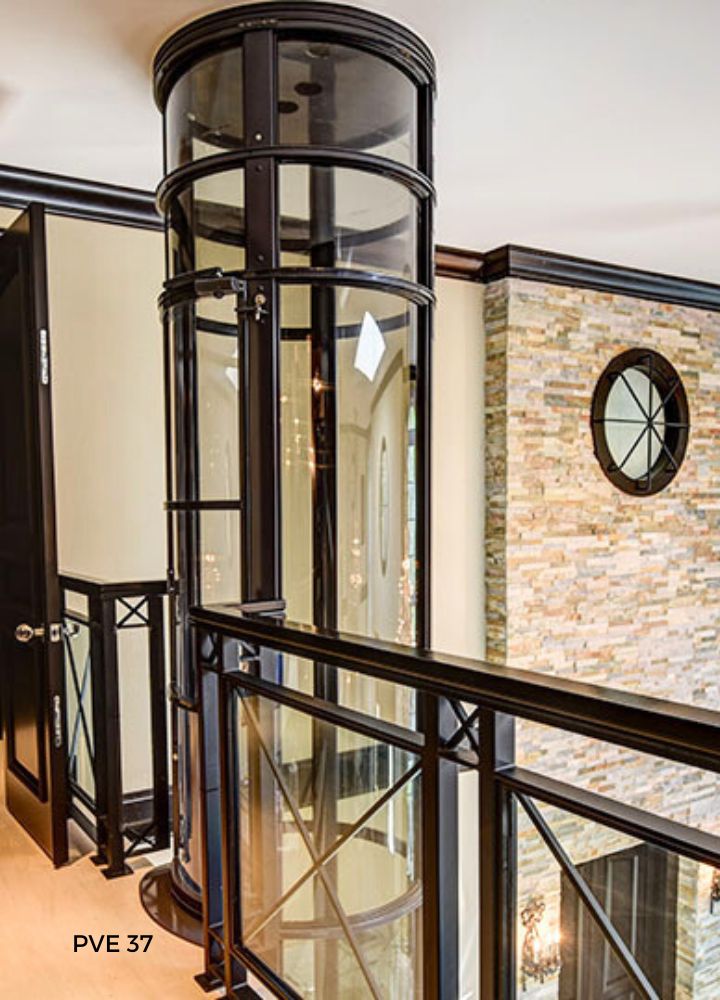

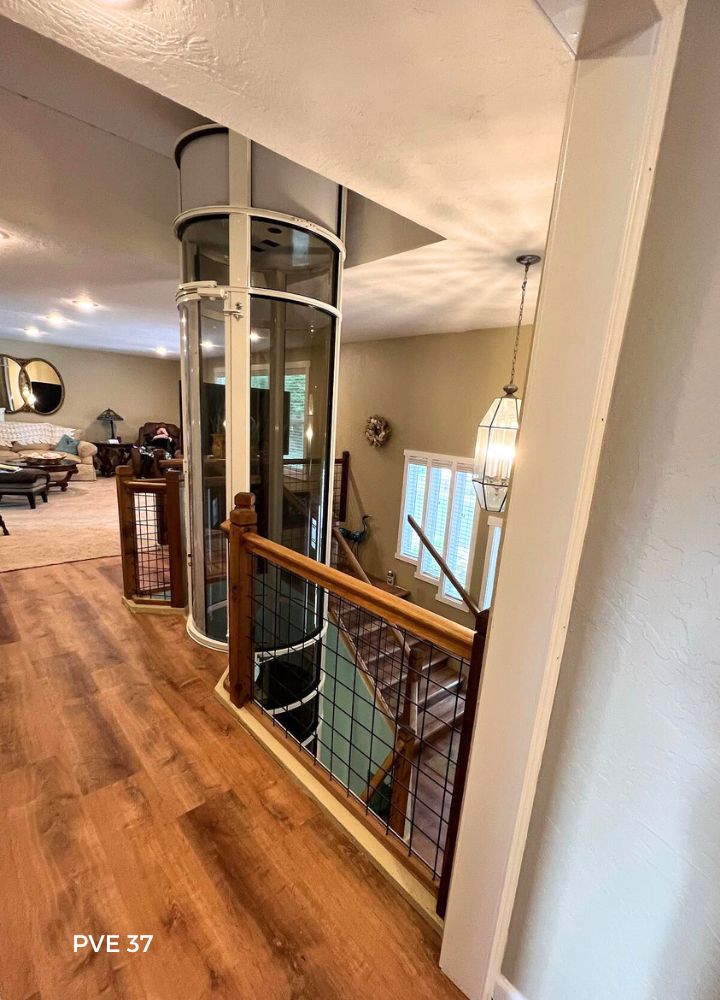

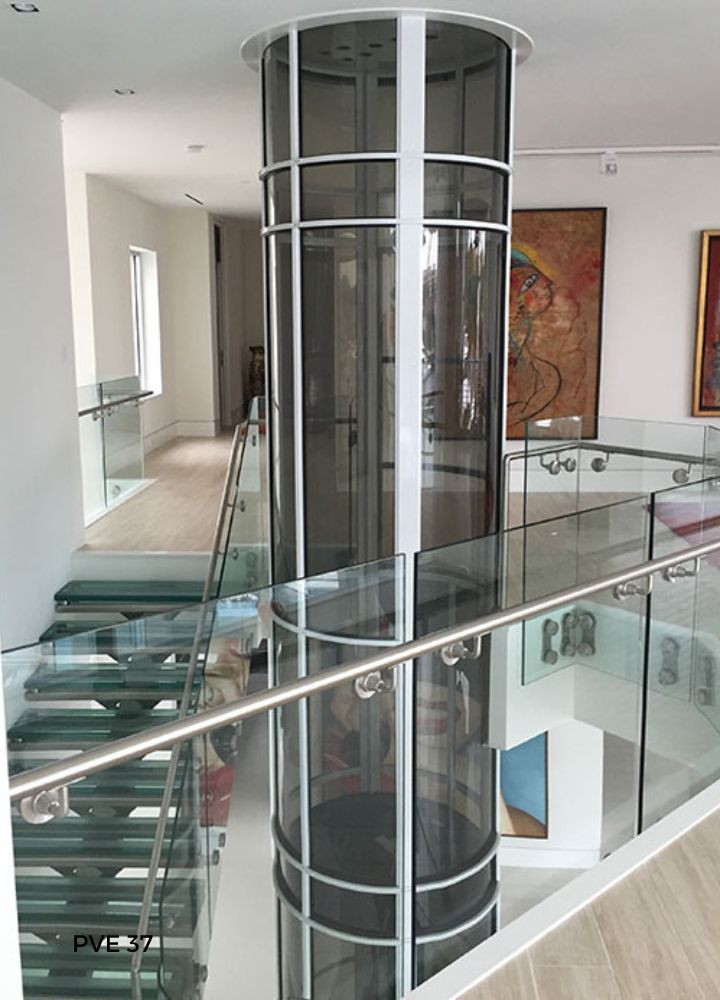

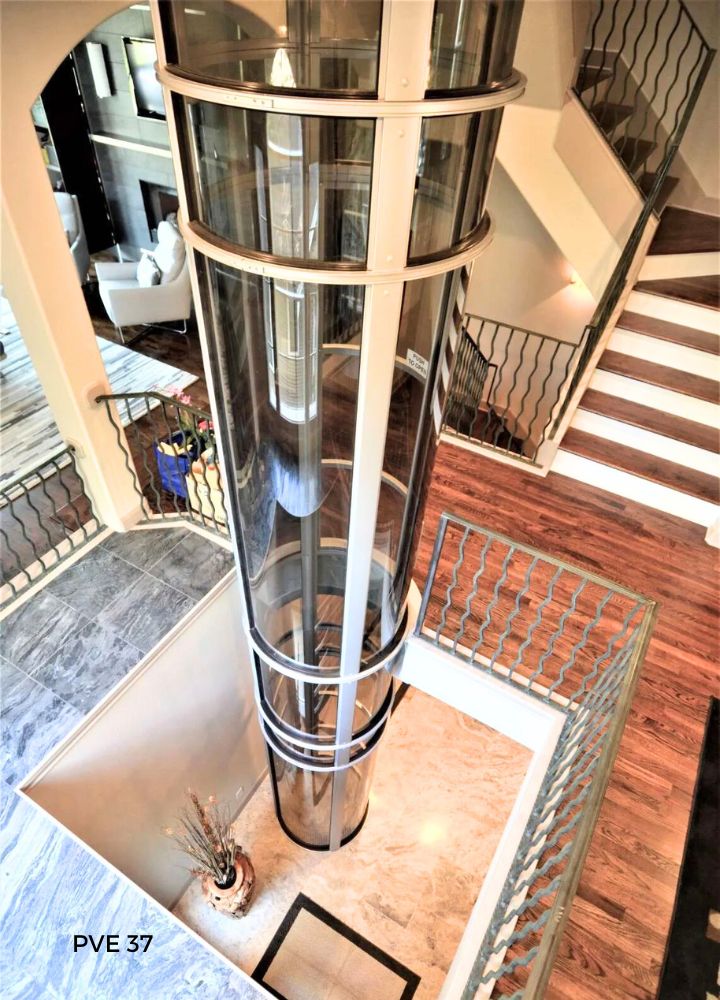

PVE 37 – 2Passanger

The PVE37 has paved the way for the rest of the pneumatic vacuum elevators lineup. The many features of this PVE37 home lift make it a great option if you want something more spacious than the PVE30, but do not have enough room or the need for the wheelchair-accessible PVE52. It measures 37 inches in outside diameter and 32 inches wide on the interior of the cabin. This air-driven residential elevator can safely carry two adults, or 450 lbs, up to as many as five stops or 50 feet in total rise. For an even more comfortable ride, you can opt to have a cabin seat installed for a single rider to sit on while being carried up to another floor.

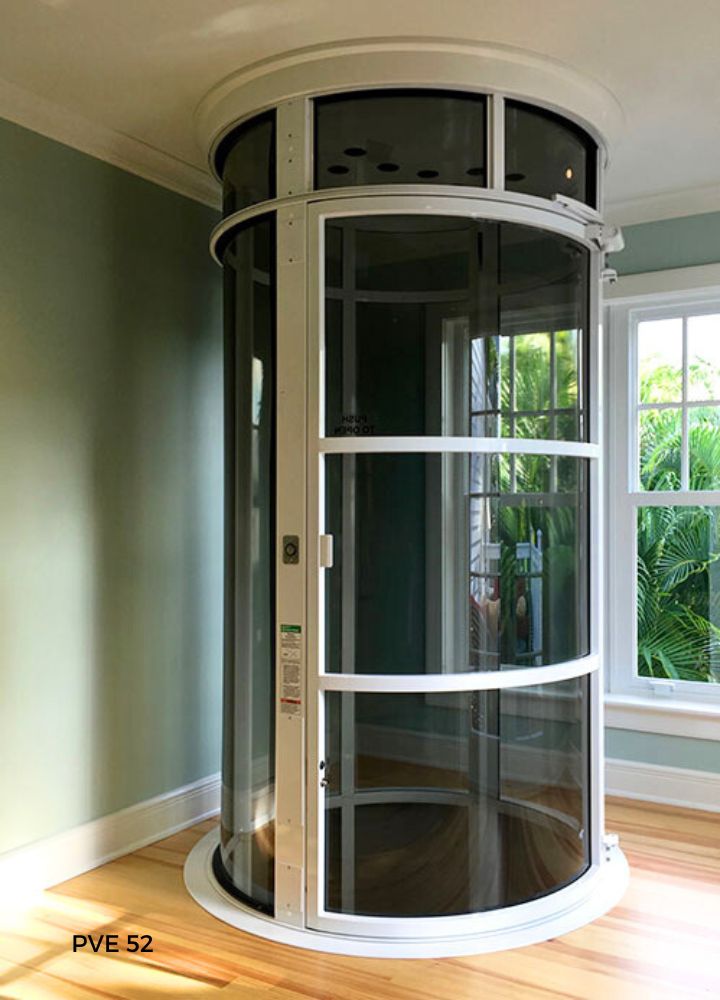

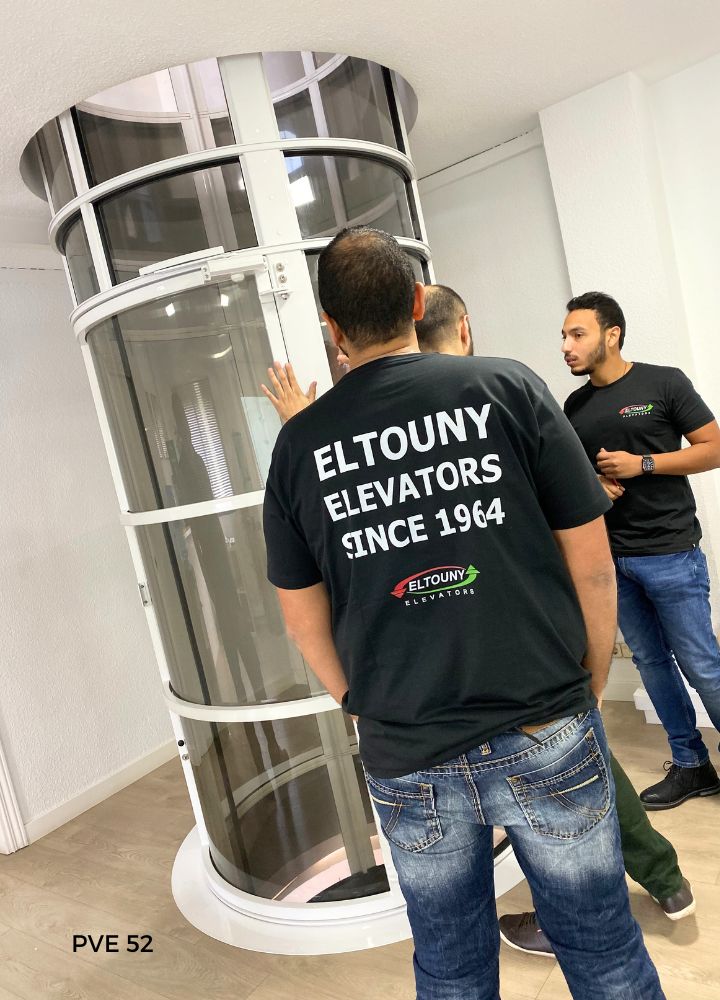

PVE 52 – 3 Passanger & Accomodate Wheelchair

This is the largest of the three vacuum elevators, capable of carrying three people or two people if one is in a wheelchair. Even our largest lift takes up less space in your home than other traditional elevators. Like all other vacuum elevators, the PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit. Since the unit has a self-supporting structure, you will not have to add a frame to your home before installing it. This means you can fit this lift anywhere in your home!

Wheelchair Accessible Home Elevator

The PVE52 can be set up to have between two to five stops, which means it can be used in homes up to five stories or a total of 50 feet. It has an external cylinder diameter of 52 11/16 inches. Inside the unit measures a roomy 43 1/2 inches in diameter.This provides enough space for a person in a wheelchair with an attendant or for up to three adults to stand in comfort. The cabin height is 6′ 7″, which is tall enough for provide headroom for most people. Rolling a wheelchair through the 32-inch wide entrance opening is easy to do! With same side or opposite side door offerings, the largest of the residential vacuum elevators can be configured to accommodate almost any elevator installation.

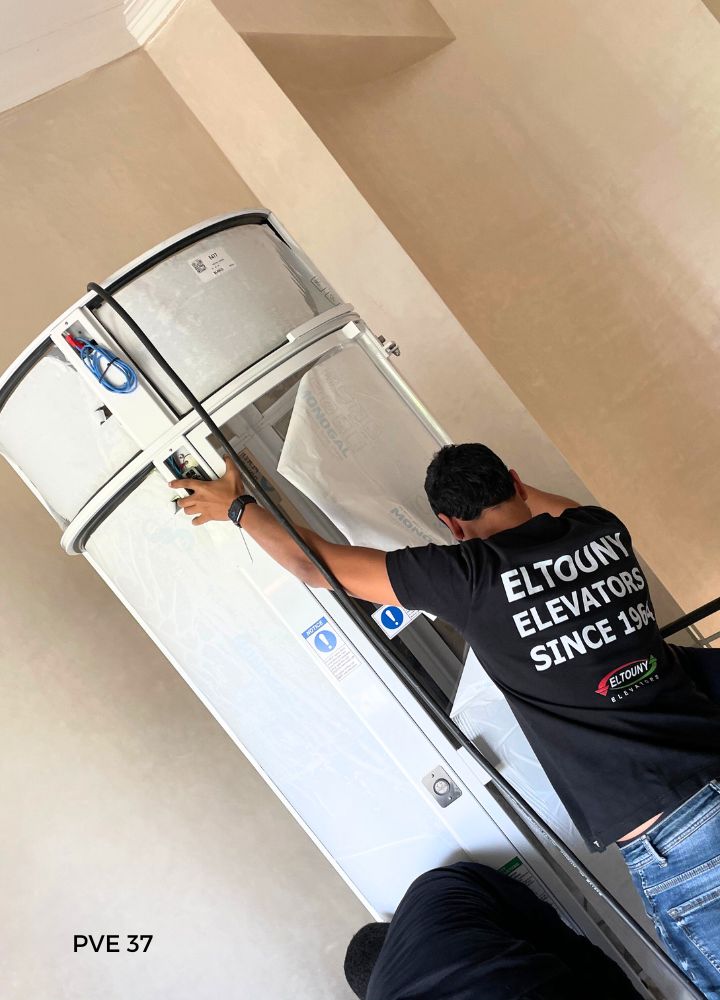

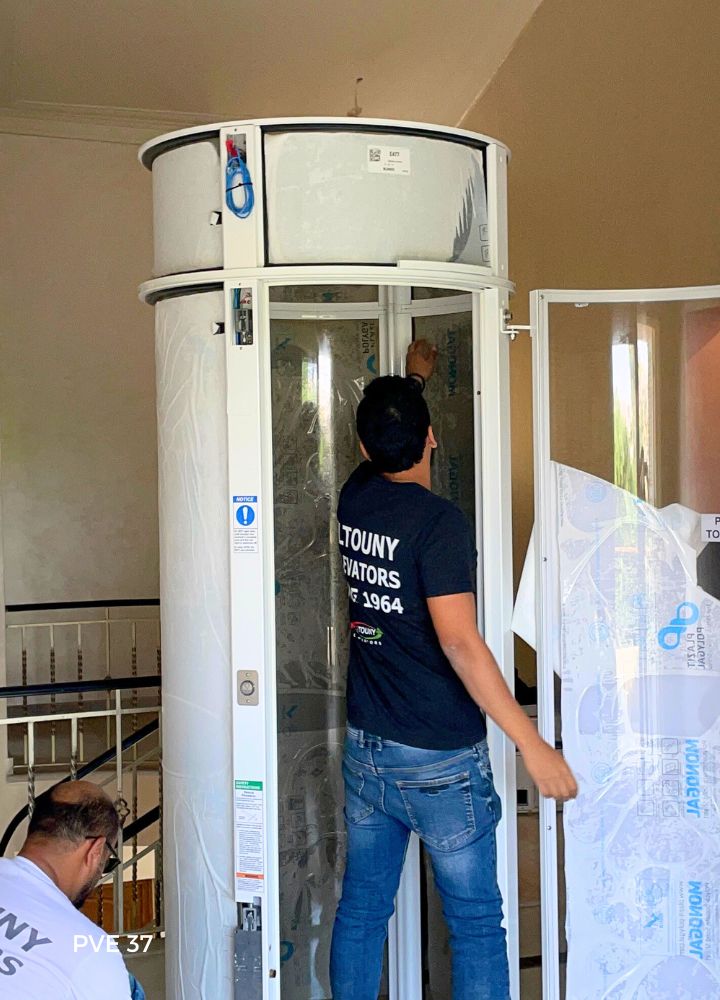

Delivery and Installation

  • Delivery Duration: 4 – 6 Months
  • Installation Duration: 5 days
  • Warranty: 12 Months

Pricing

  • Price includes VAT tax.
  • Price includes
  • Price doesn’t include any construction work might be needed.
  • Price include installation in Cairo and Giza Only.

Payment Terms

  • 75% in advance
  • 20% when goods arrive Egyptian’s port
  • 5% on installation day
  • Price doesn’t include any construction work
